HHH + 5W + 1V1T Wiring Diagram
January 26, 2024 JiangAnn

HHH + 5W + 1V1T Wiring Diagram

3 Humbuckers/5-Way Switch/1 Volume/1 Tone

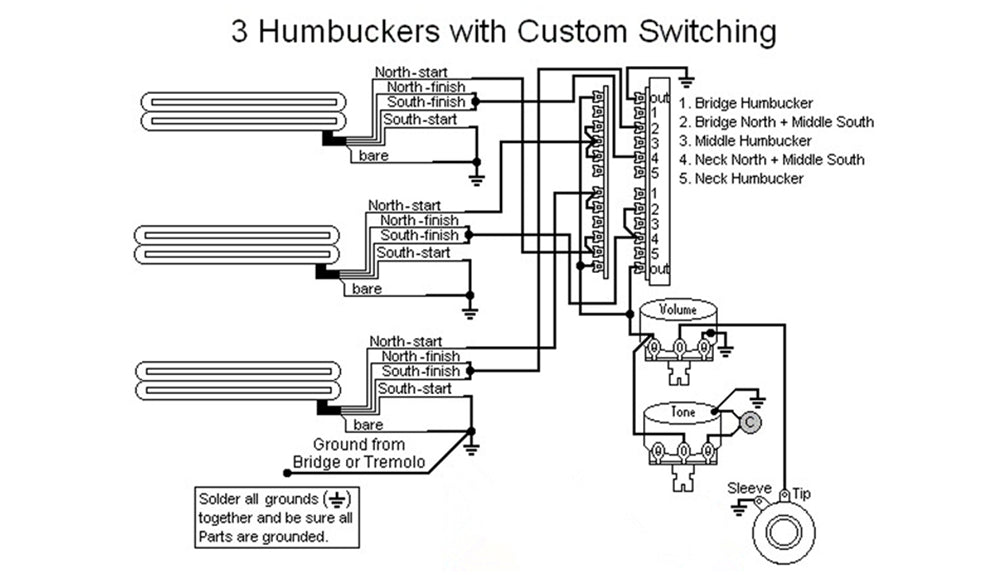

3 mini Humbuckers, 5 -way lever switch, 1 Volume, 1 Tone. Three mini humbuckers with custom pickup switching.
