HHH + 3W + 2V2T Wiring Diagram
January 26, 2024 JiangAnn

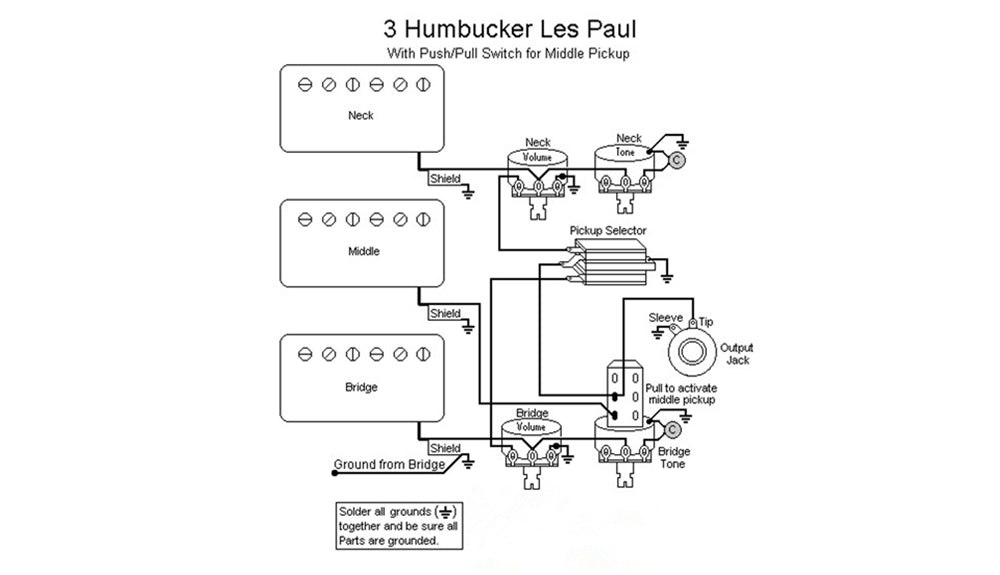

HHH + 3W + 2V2T Wiring Diagram

3 Humbuckers/3-Way Switch/2 Volumes/2 Tones

3 Humbuckers, 3-way toggle, 2 volumes, 2 tones. Les Paul with three humbuckers. Middle pickup is turned with a push/pull pot.
