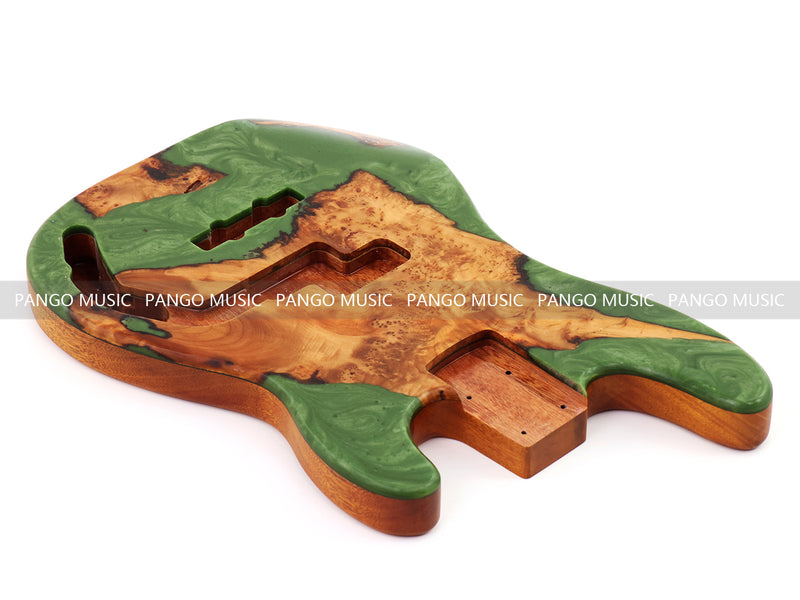

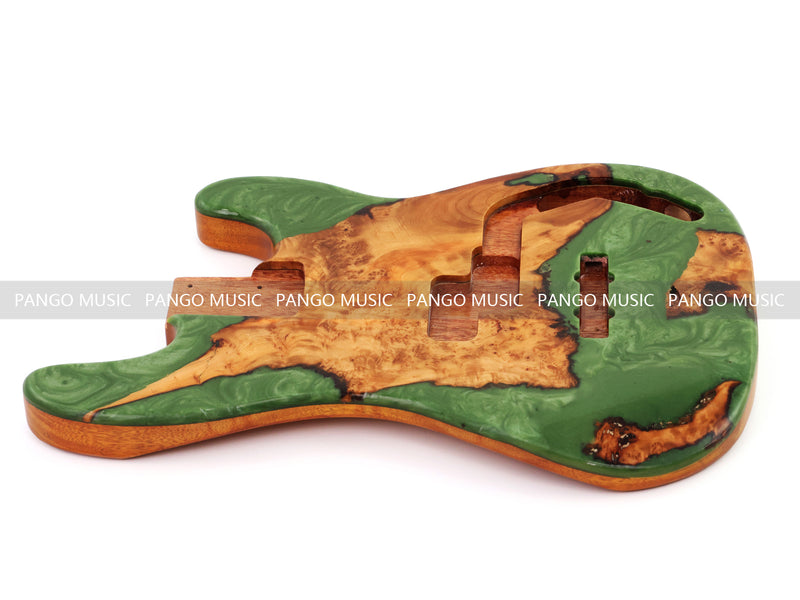

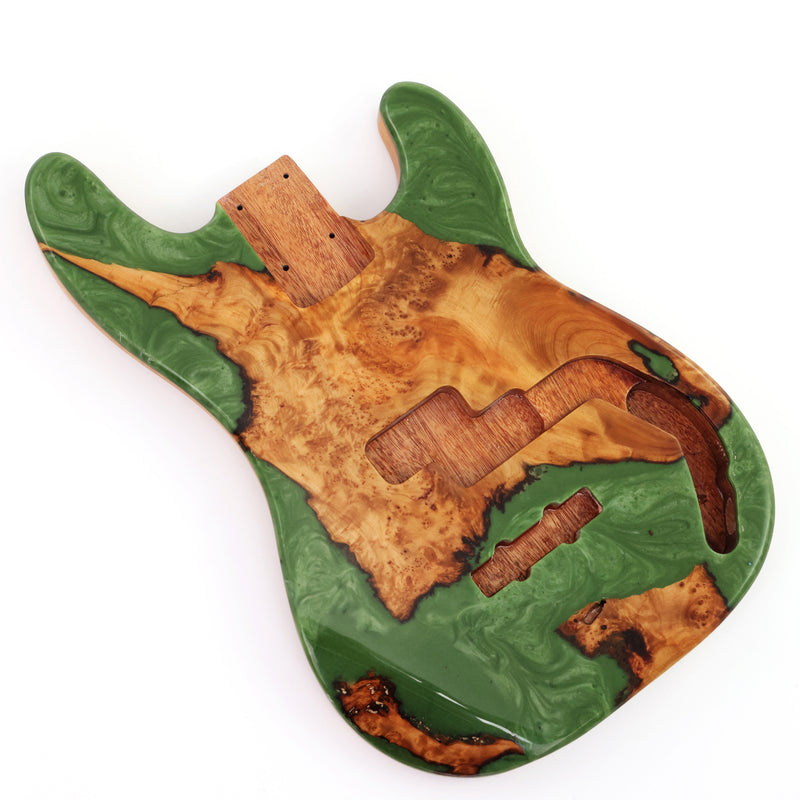

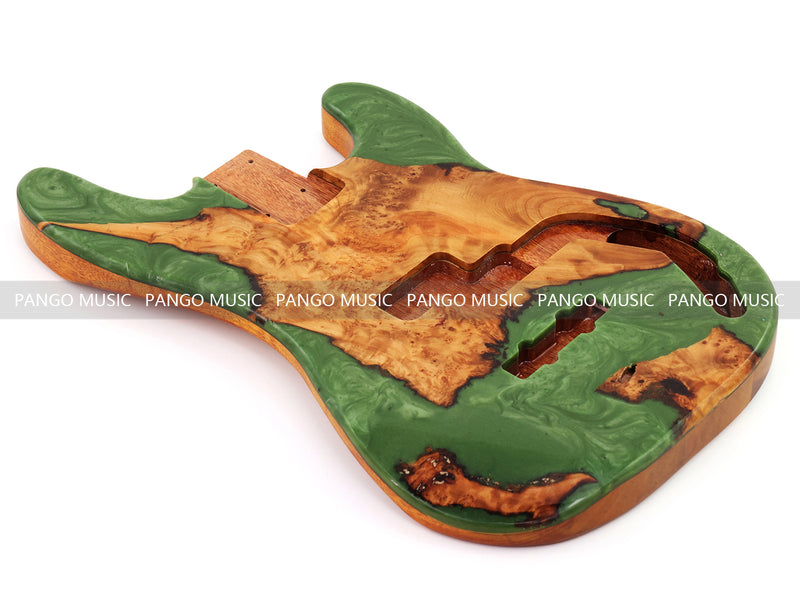

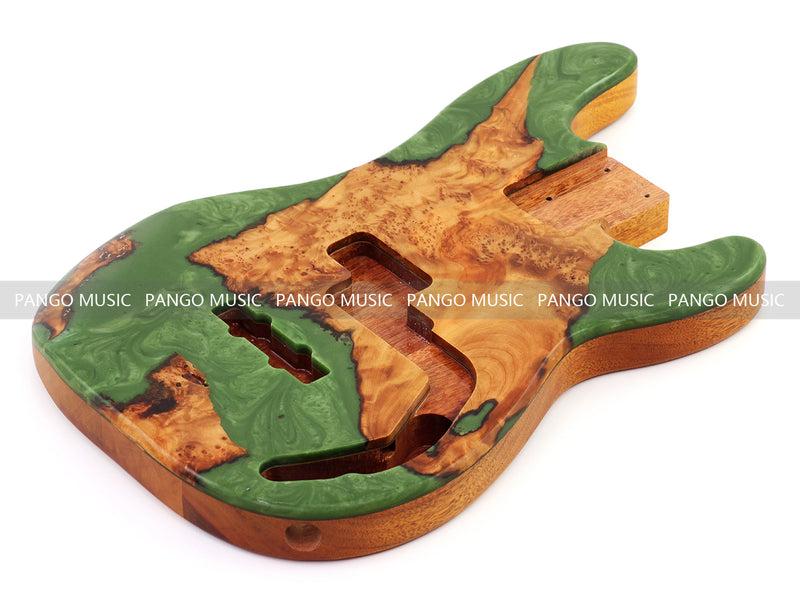

One-of-a-Kind Burl Wood Veneer Epoxy Resin PJ-Style Electric Bass Guitar Body (PJE-014)
Product Specifications
Model: PJE-014
Style: PJ Configuration (PB-Shape with P & J Routing) - X-PJ Custom Shop
Series: X Series, Artisan Series
Matching Necks: PBN-001, PBN-001-S, PBN-001-X

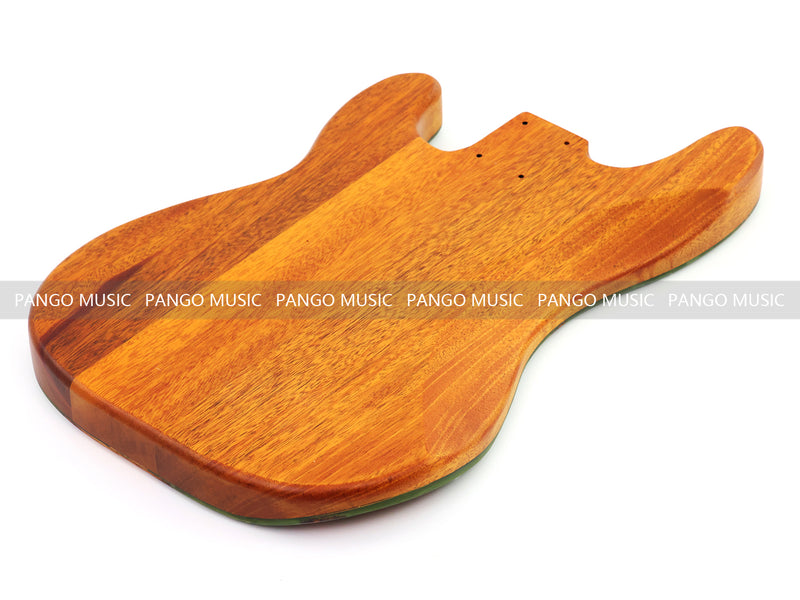

Body Wood: Solid Mahogany
Finish: Gloss Hand-Poured Epoxy Resin + Burl Veneer
Orientation: Right-Handed
Net Weight: Approx. 2.42 kg / 5.34 lbs (Body only)
Manufacturer: Pango Music
Product Video: ...
Specifications for PB-Style Bass Body (PJ Configuration)

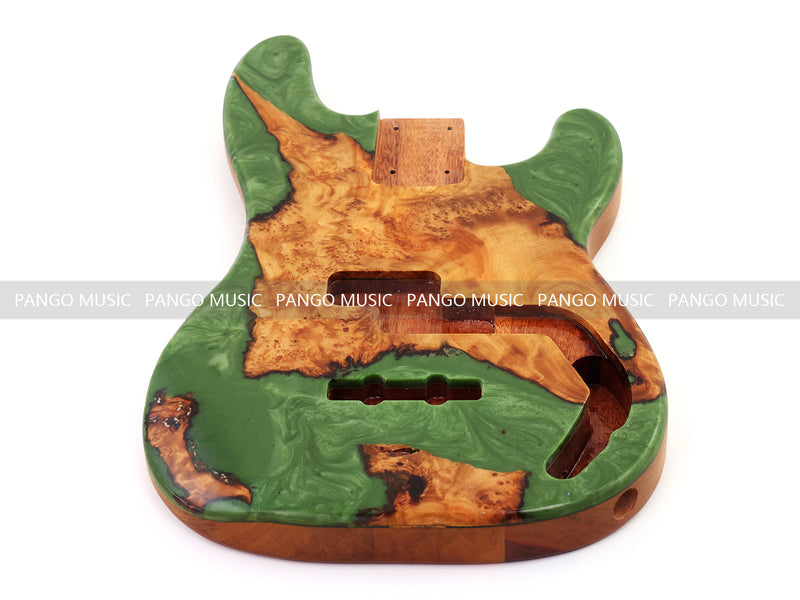

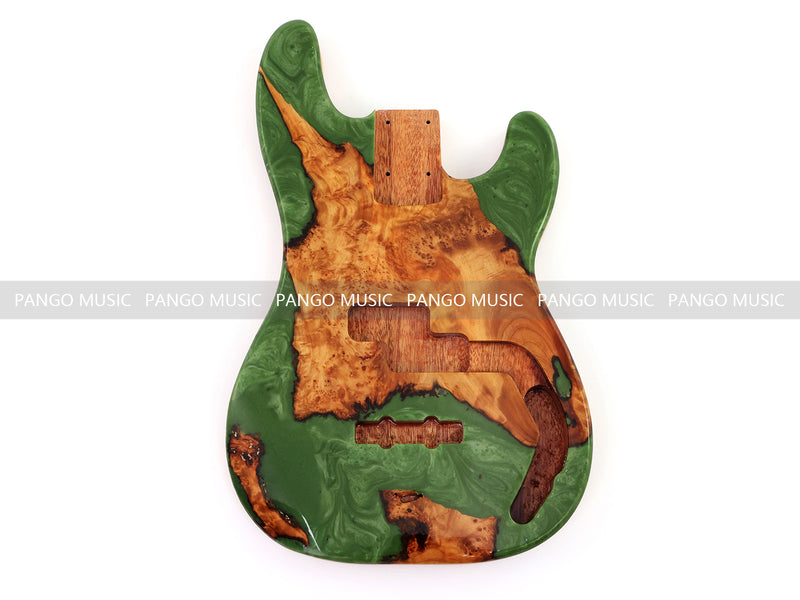

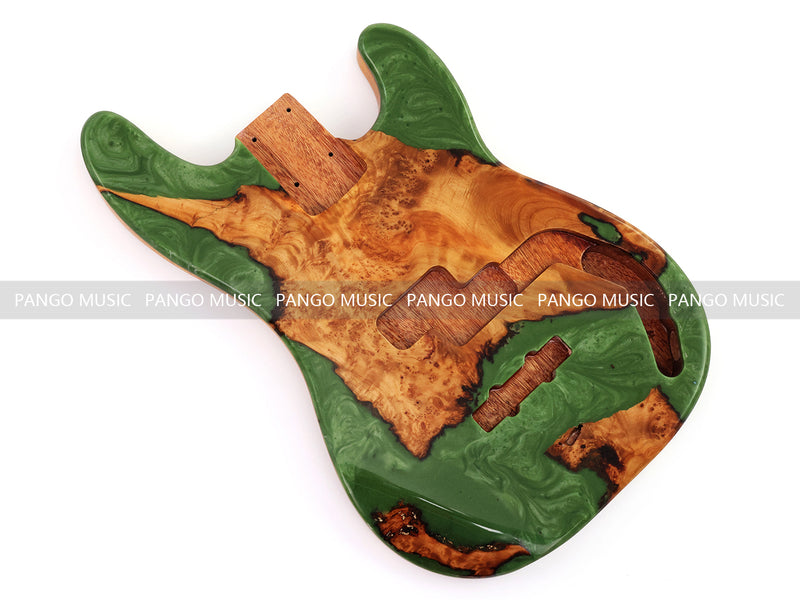

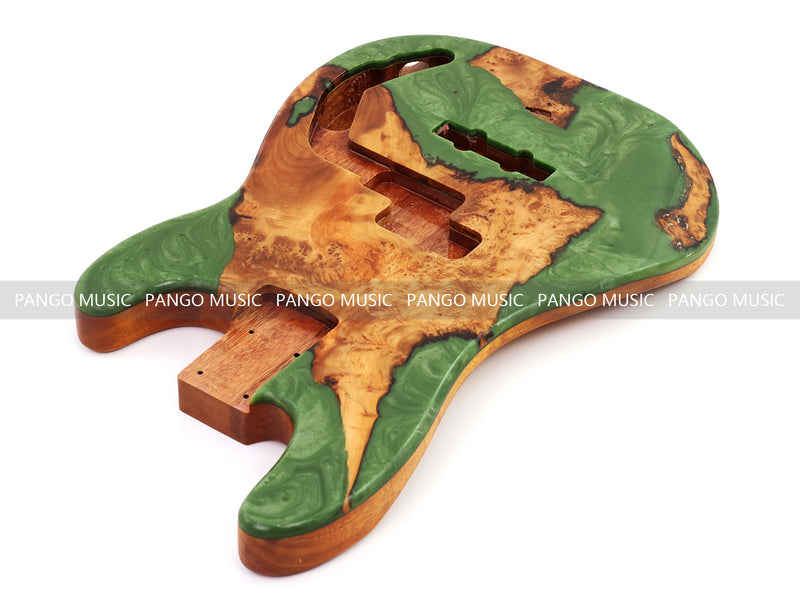

This body features a versatile PJ routing layout, allowing you to install a classic P-Bass split-coil pickup in the middle and a J-Bass single-coil pickup at the bridge.
1. Neck Pocket (Standard Bolt-On)
• Width: 64.00 mm (2.52")
• Length: 99.00 mm (3.90")
2. P-Bass Pickup Cavity (Middle)
• Overall Length (Including Tabs): 110.00 mm (4.33")
• Cavity Width (Center): 36.00 mm (1.42")
3. J-Bass Pickup Cavity (Bridge)
• Overall Length (Including Ears): 97.00 mm (3.82")
• Cavity Width (Center): 21.00 mm (0.83")
(Note: The exact piece pictured is the one you will receive. Please refer to the CAD dimension photos in the gallery to ensure compatibility with your specific build.)
Packaging Configuration (4-Layer Protection)
1. Inner Layer: Abrasion-resistant & shockproof foam bag
2. Middle Layer 1: Foam box sealed with yellow tape
3. Middle Layer 2: Thickened kraft paper wrapping
4. Outer Layer: Clear tape for final reinforcement
Shipping & Delivery
• Processing Time: 2-4 business days
• Shipping Methods:
--United States: Sea Freight + final delivery via UPS/FedEx
--Other Countries/Regions: EMS International Express
• Estimated Shipping Time: 20-25 days
• Tracking Information: Full tracking details will be sent to your email immediately upon shipment.
Customization & Order Options
• Logo Service: Custom design available (supports personalized logo needs).
• Dropshipping: Supported (suitable for resellers or bulk distribution needs).
• MOQ Requirement: Custom design & OEM orders are welcome, with a minimum order quantity (MOQ) of just 1 set.
• Custom Order Confirmation: For custom design orders, we will take detailed photos of the finished product and send them to you first, allowing you to check every detail before shipment.
Important Notes
1. Custom Logo: If you want a logo on the body, please contact us anytime—we can make it for you!
2. Real Photos: All photos are unedited and of the actual product. The last few photos are straight from a phone camera—what you see is what you get.
3. CNC Routing Data: The 3rd, 4th, and 5th images from the bottom show the exact CNC routing dimensions for the neck pocket, P-Bass Split-Coil, and J-Bass Single-Coil pickups, respectively.
