EVH Style Custom Design Guitar Neck (2023-08-09)

EVH custom design guitar neck,
scale length: 25.5"(647.7mm)
neck thickness: .805 at 3rd fret and .890 at 12th fret
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Roasted maple neck (no painting, natural wood with Satin Urethane front and back)
roasted maple fretboard
22 jumbo ferts

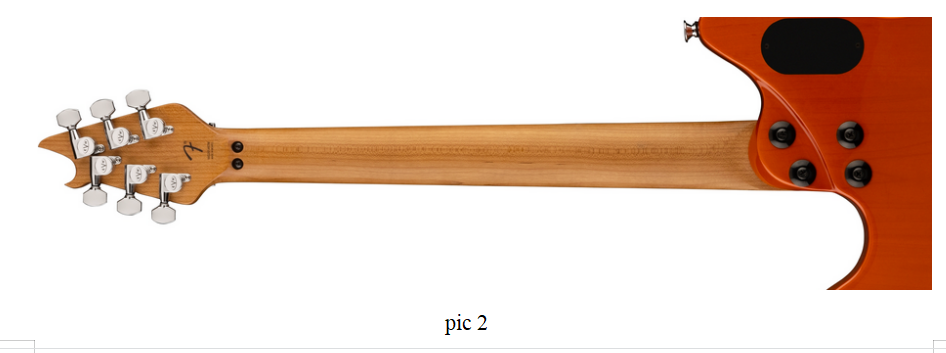

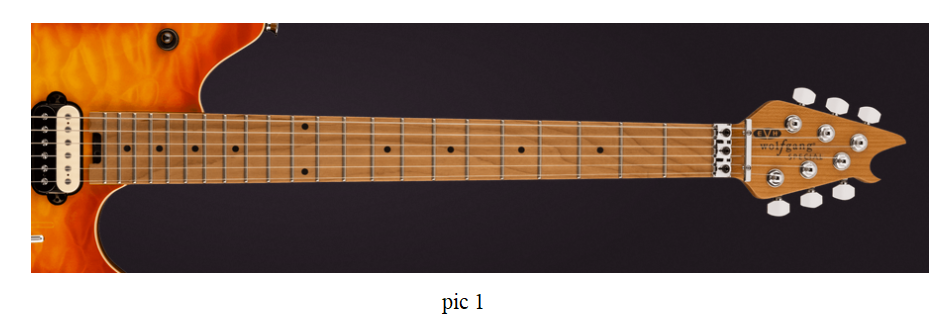

all the other details are same as pic1,2
Different headstock:
Headstock painting: matt

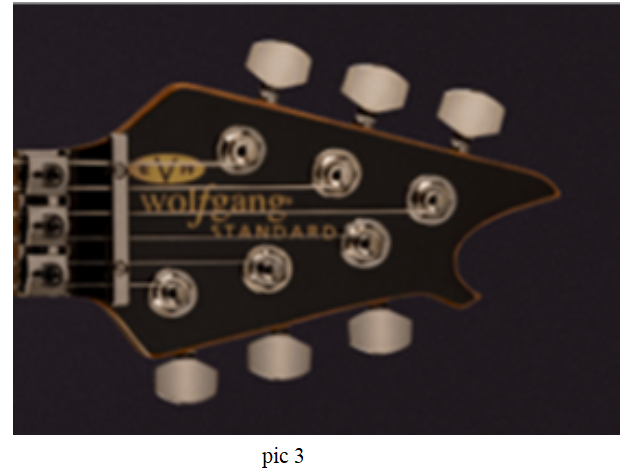

One in Black with the logo in Silver, with shadow chrome locking nut and string retainer---refer to pic3

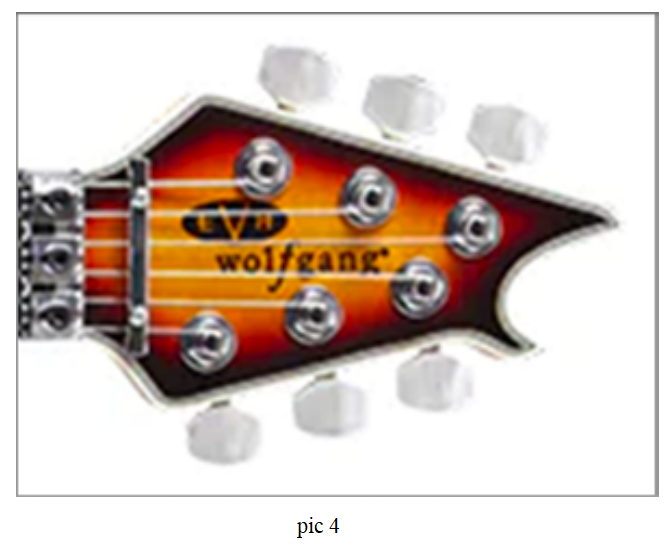

One in sunburst with the logo in black, with silver locking nut and string retainer---refer to pic4
One in red/white stripes with the logo in black, with black locking nut and string retainer---refer to pic5

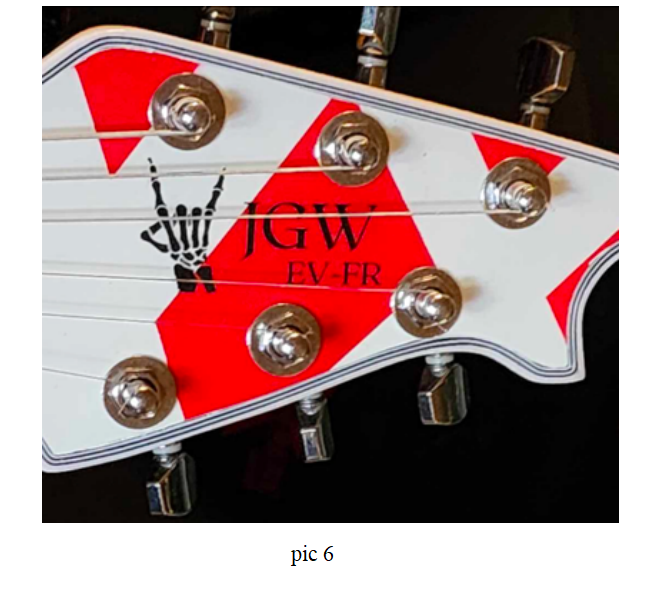

The logo and logo position---refer to pic6

the building time is about 50 days
