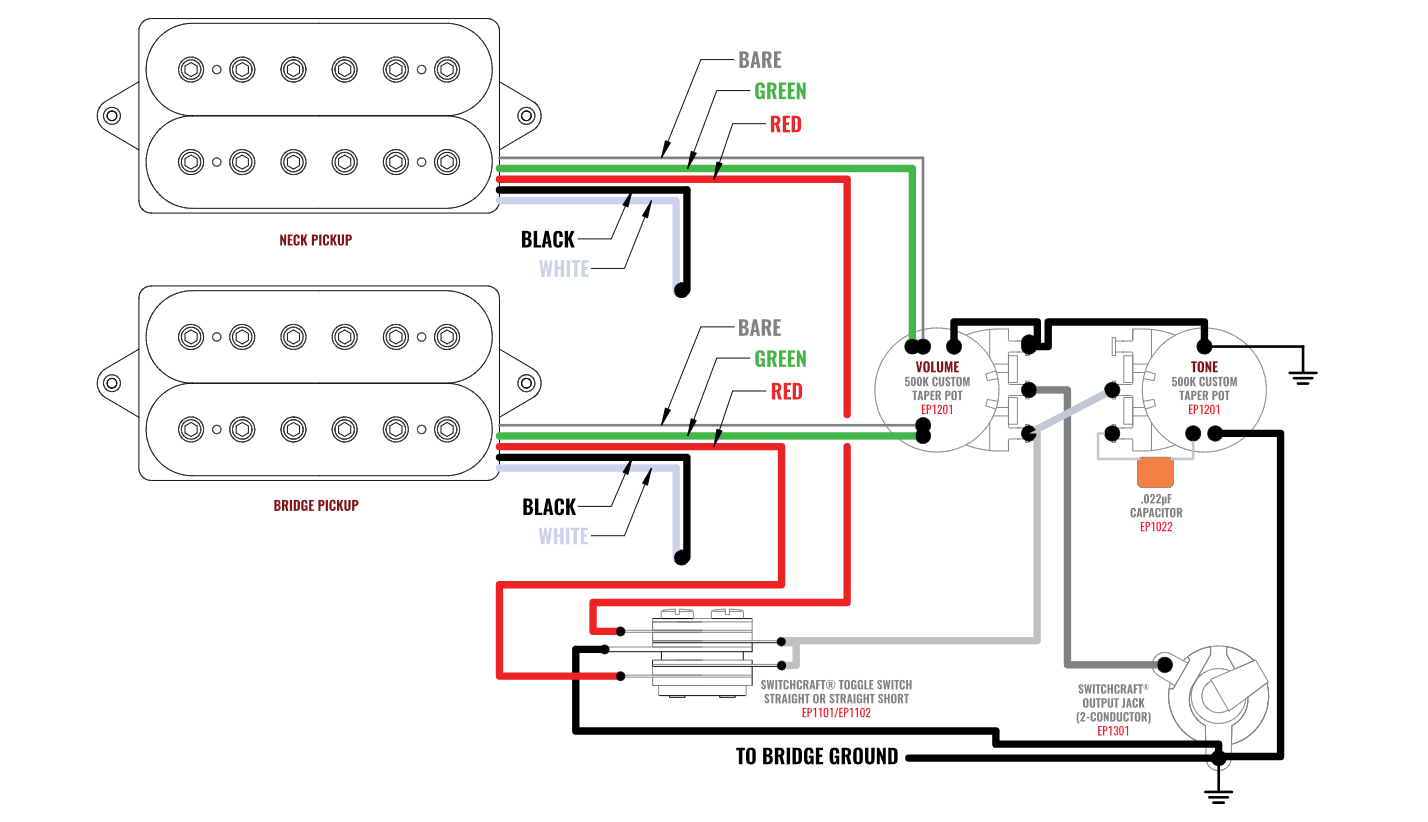

HH + 3W + VT Wiring Diagram

HH + 3W + VT Wiring Diagram

HH WIRING - 2 HUMBUCKER, 3-WAY TOGGLE SWITCH

Wiring for humbucker bridge, humbucker neck, and 3-way toggle switch. The 3-way switch is wired so that Position 1 = neck; Position 2 = neck & bridge; Position 3 = bridge.
