3 Band NTMB+F Preamp, Active/Passive, 5 Pots, Push/Pull Mid Wiring Diagram

3 Band NTMB+F Preamp, Active/Passive, 5 Pots, Push/Pull Mid Wiring Diagram

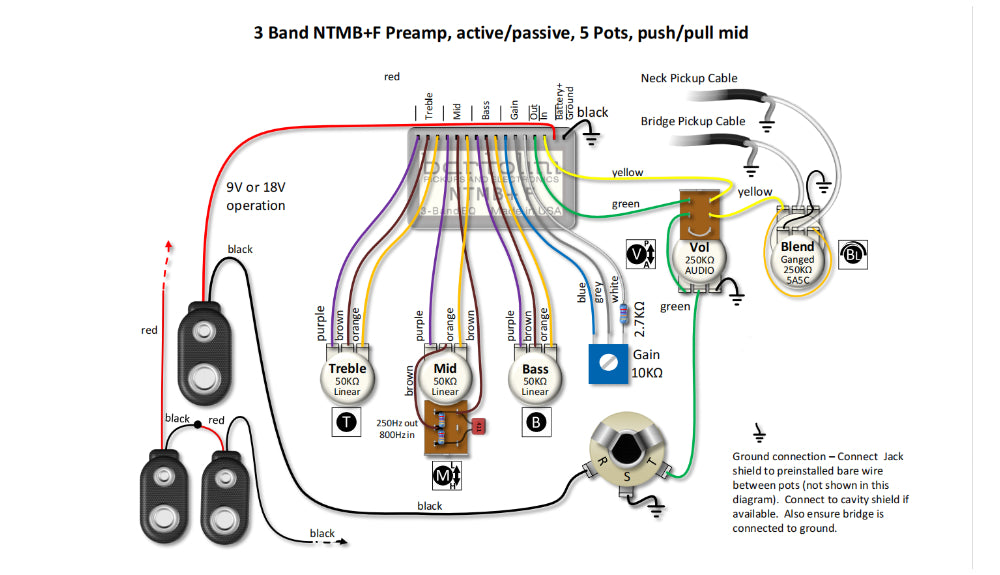

3 Band EQ, 5 Pots: (Volume with Pull-Bypass Switch) (Blend) (Treble) (Mid with 250/800Hz push-pull) (Bass)
