SSS + 5W + VT Wiring Diagram

SSS + 5W + VT Wiring Diagram

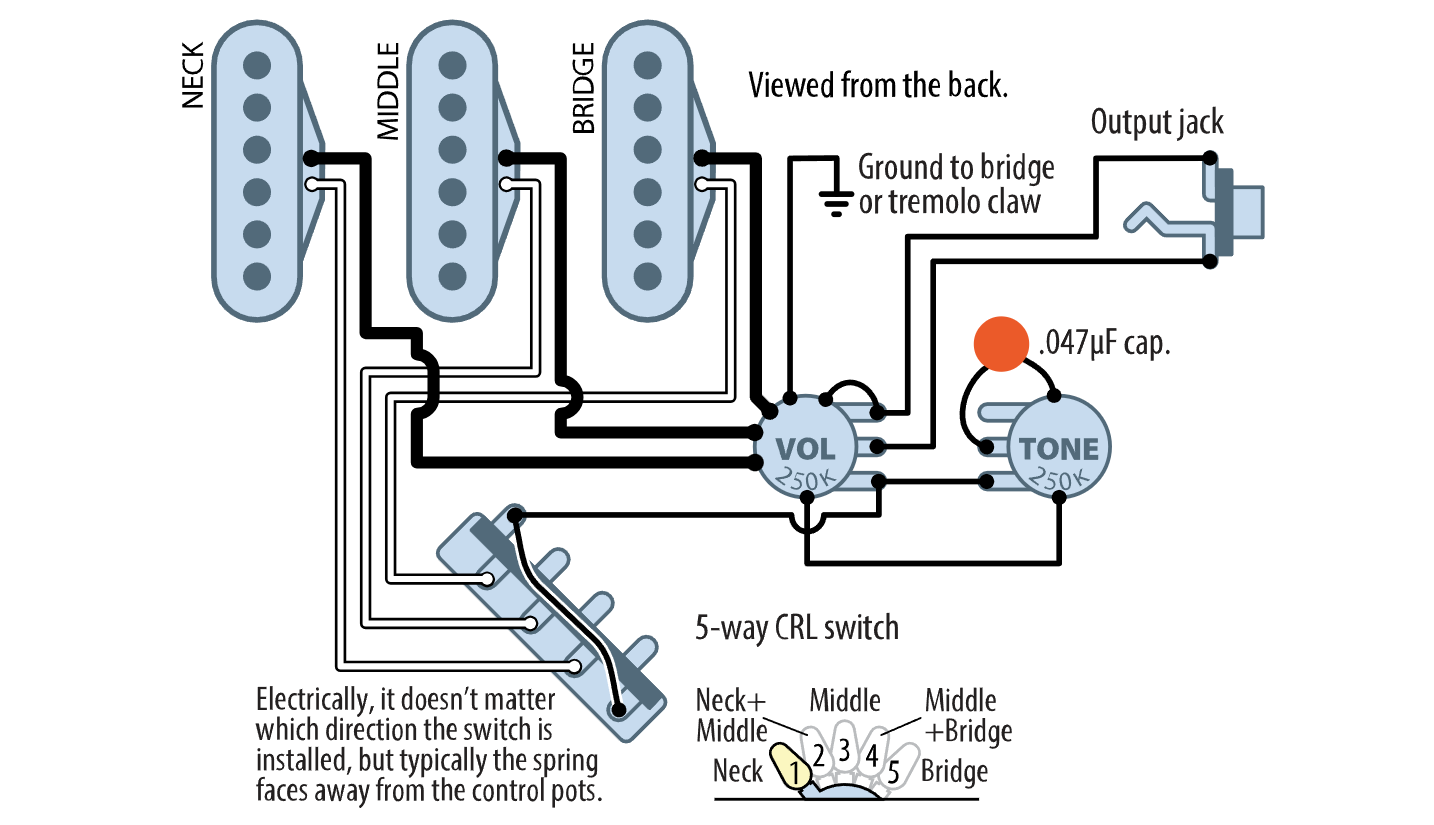

Three single-coils with one volume and one tone control
SSS + 5W + VT

Setting your pickup height
Humbuckers are usually set closer to the strings than single-coils, because they have less of a focused magnetic pull. Start with a gap of about 3/32" under the bottom of the Low-E string when fretted at the highest fret, and a 1/16" gap under the High-E string. Raise or lower the heights of the neck and bridge pickups to find the tone/volume balance you like best.
