TT + 4W + VT Custom TL Wiring Diagram

TT + 4W + VT Custom TL Wiring Diagram

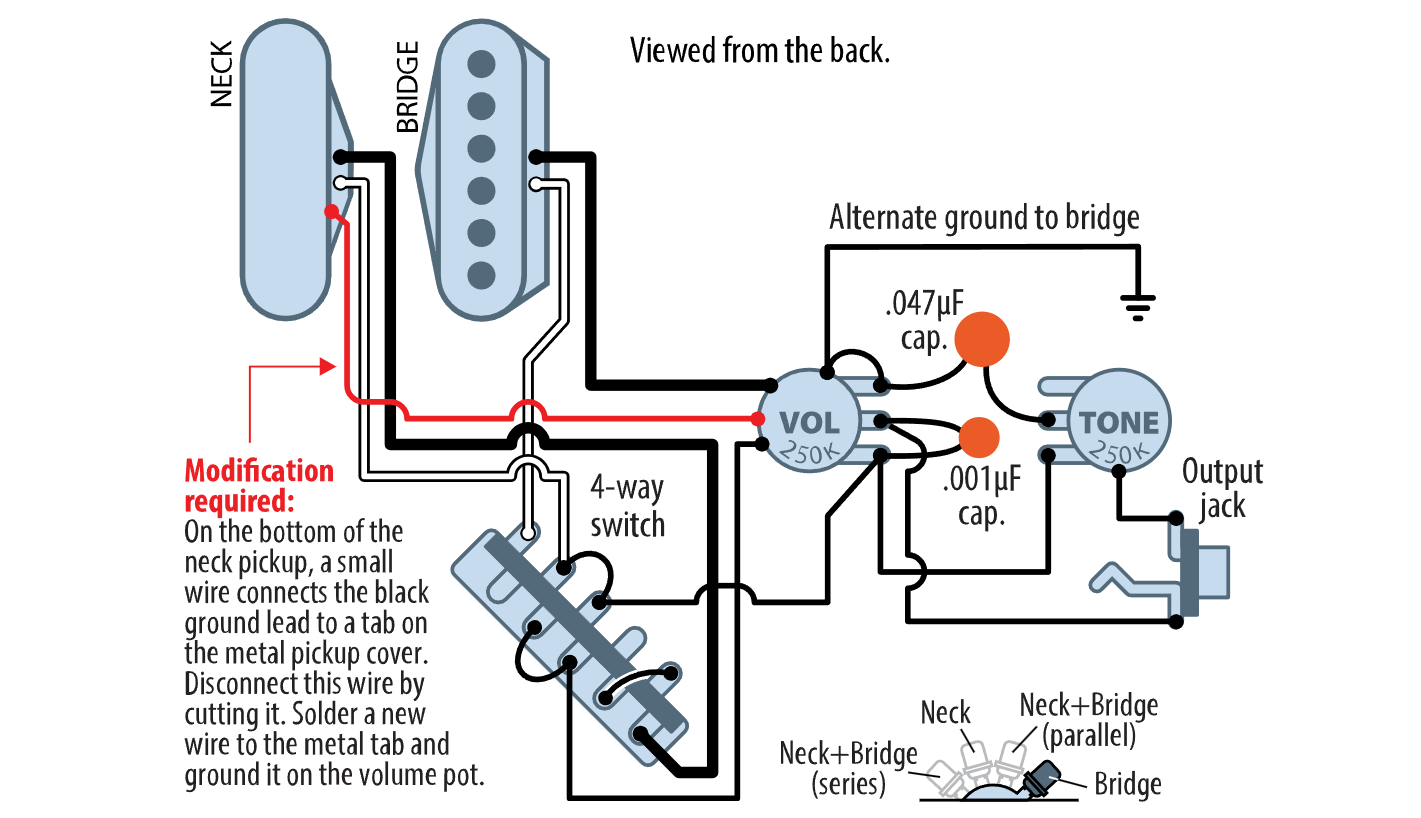

Custom Tele with series/parallel options
With Oak Grigsby 4-way switch #2002. TT + 4W + VT

Setting your pickup height
Leave about 1/8" between the Low-E polepiece and the bottom of the string when fretted at the highest fret, and a 3/32" gap for the High-E. If single-coils are set too high, their magnetic pull on the wound strings can cause false notes.
